Description

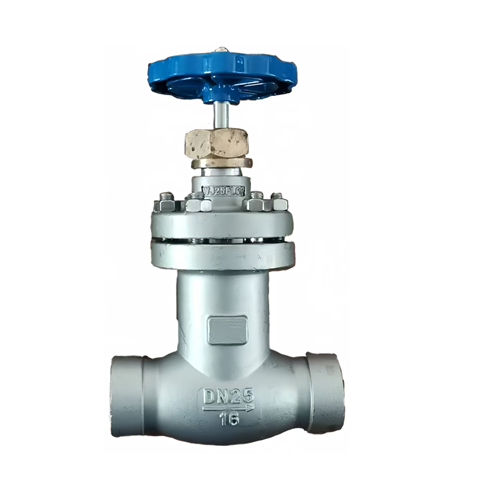

l The valve is suitable for Hydrogen and various high purity gases.
l Model description
W J □ F 1.6 P
W-Bellows, J-Globe valve, □-Norminal diameter, F-PTFE Seal face, 1.6-Nominal pressure, P-Body material SS
Product structure drawing
Technical specification
Type | Nominal press. (MPa) | Suitable temp. ℃ | Main parts material | |||
Body, bonnet | Disc, stem | Bellows | Packing ring | |||
WJ □ F1.6P | 1.6 | -30℃ to +50℃ | CF8 | F304H | SS | PTFE |
End dimension and overall dimension
Type | D1 | D2 | B | L | H/K | M | Weight |
WJ10F1.6P | 10 | 12.5 | 8 | 66 | 130/136 | 65 | 1.3 |
WJ15F1.6P | 15 | 20.4 | 8 | 66 | 137/142 | 65 | 2.2 |
WJ20F1.6P | 20 | 25.5 | 10 | 115 | 177/185 | 100 | 3.2 |
WJ25F1.6P | 25 | 32.5 | 10 | 115 | 177/185 | 100 | 3.2 |
WJ32F1.6P | 32 | 38.5 | 12 | 138 | 191/204 | 120 | 4.2 |
WJ40F1.6P | 40 | 45.5 | 12 | 138 | 191/204 | 120 | 4.2 |
WJ50F1.6P | 50 | 57.5 | 15 | 164 | 230/246 | 120 | 7.5 |
WJ65F1.6P | 65 | 76.5 | 15 | 194 | 260/280 | 150 | 11 |
WJ80F1.6P | 80 | 89.5 | 15 | 204 | 280/305 | 180 | 14.5 |
WJ100F1.6P | 100 | 108.5 | 15 | 226 | 300/330 | 210 | 23 |
